he Type 1010 planetary gearbox is specifically developed to meet the demands of high-load industrial operations requiring both powerful torque transmission and dependable long-term performance. Its modular construction enables configurations from one to four stages (L1 to L4), giving designers the flexibility to tailor speed reduction and torque multiplication according to the complexity of the system. The L1 version delivers gear ratios from 4.00 to 7.00 and handles output torques ranging from 5900 to 17110 Nm. The L2 setup extends the ratio spectrum from 13.60 to 49.00, while the L3 option covers from 54.40 to 352.80. For applications requiring the highest reduction levels, the L4 configuration offers ratios up to 2190.89. Designed to support motor power inputs of 14, 17, 23, or 39 kW and a maximum input speed of 1500 rpm, this gearbox ensures smooth, consistent operation under both continuous and intermittent loads.
Due to its broad performance range, the Type 1010 is well-suited for industries such as mining and ore processing, heavy-duty conveyor systems, rotary mixers in cement production, marine winches and cranes, and large-scale recycling equipment. Wherever high torque and rugged construction are critical, this gearbox delivers reliable motion control and energy efficiency.
The Type 1700 planetary gearbox is a heavy-duty power transmission solution built to deliver robust performance in the most demanding industrial environments. Designed with modularity in mind, it can be configured in one to four-stage designs (L1 to L4), making it adaptable to a broad variety of torque and speed reduction requirements. In its single-stage configuration (L1), it provides gear ratios between 3.90 and 6.27 and delivers impressive torque outputs from 10,270 to 26,430 Nm. For more complex systems requiring greater reduction, the two-stage (L2) version expands this range to 13.26–43.89. The three-stage configuration (L3) covers ratios from 53.04 to 307.23, while the four-stage (L4) offers extreme reduction levels between 381.89 and 2212.06. With support for input powers of 16, 21, 28, or 48 kW and a maximum input speed of 1500 rpm, this gearbox is built to run reliably under high loads, shock conditions, and continuous-duty cycles.
Thanks to its wide reduction range and high torque capacity, the Type 1700 is ideal for industries such as mining (excavators, ore crushers), cement and aggregate handling (kiln drives, mixers), steel processing (ladle turrets, coilers), marine winching systems, tunnel boring machines, and large industrial shredders. Any application that demands high torque and sustained mechanical durability can benefit from this gearbox.
If you want to have more information or register a card , please contact us .

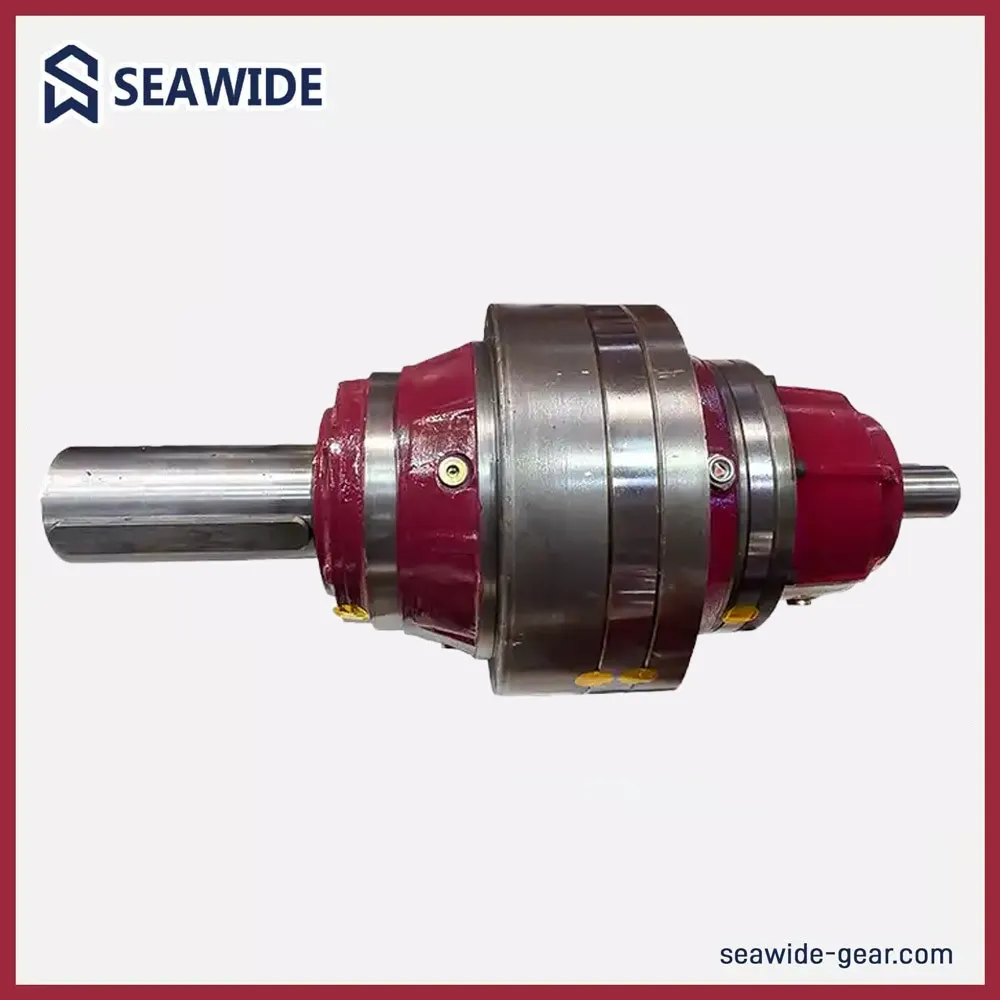

The Series Z Double-Support Flanged Output Planetary Gearbox is engineered for precision balance, low vibration, and high torque industrial applications. Its dual-support flanged design distributes load evenly across the gearbox, minimizing backlash and enhancing structural stability. Unlike standard single-output planetary gearboxes, the Series Z excels in vibration-sensitive environments where consistent torque and reliability are critical.
Double-Support Flanged Output: Ensures even load distribution and reduces vibrations for smoother operations.
High Torque Capacity: Capable of handling torque from 36 Nm to 395,000 Nm, suitable for heavy-duty industrial applications.
Zero-Backlash Options: Provides precision for sensitive processes, ideal for printing, electronics, and machining applications.
High Efficiency: 90–95% efficiency ensures energy savings and optimal performance.
Durable Construction: Made with premium materials and advanced production techniques, designed to last in harsh industrial environments.
Cooling Options: Optional radiator cooling improves performance under high-temperature or continuous-duty conditions.
Gear Ratios: 3.20 – 1,375.92 (multi-stage L1–L4)
Input Power: 0.75 – 400 kW

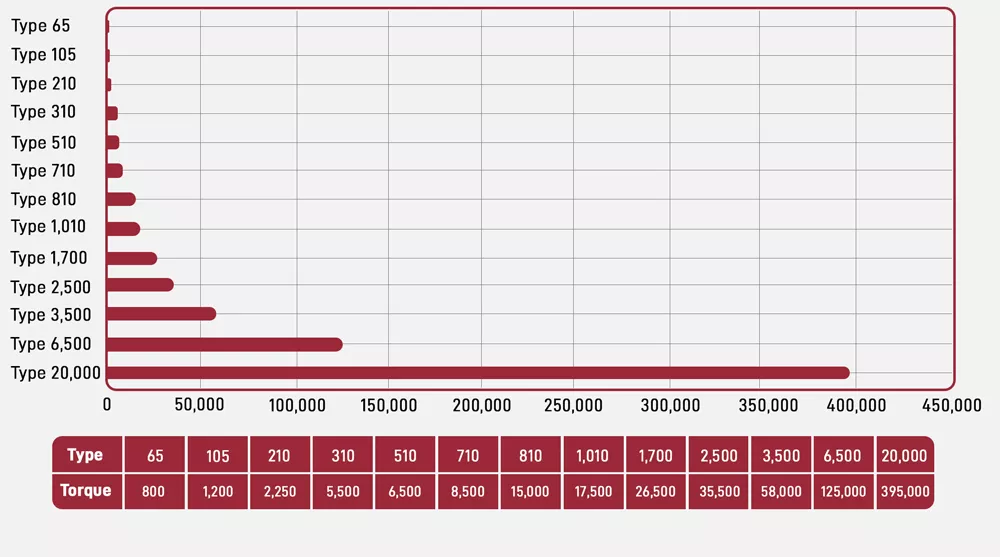

Torque Range: 36 – 395,000 Nm
Shaft Sizes: Input 40–100 mm; Output 40–160 mm
Model Sizes: 65 to 20,000
Variants:
ZC: Single-keyed flanged output
ZE: Splined flanged output
ZS: Gear output
The Double-Support Flanged Output Planetary Gearbox Series Z is widely used in industries requiring precise torque distribution and vibration control:
Rolling Mills & Conveyor Systems: Stable torque ensures smooth material handling.
Automotive Assembly: Reduces vibrations during production processes.
Mining & Construction Equipment: Supports crushers, mixers, and heavy machinery.
Renewable Energy: Optimizes turbine blade movement and hydro systems.
Precision Manufacturing: Suitable for printing presses, electronics assembly, and high-precision machines.
Compared to other planetary gearboxes, the Series Z Double-Support Flanged Output Planetary Gearbox:
Provides superior stability in high-vibration setups.
Distributes torque evenly across dual supports, reducing wear and maintenance.
Offers multi-stage ratios for versatile industrial applications.
Ensures long-term reliability with optional cooling and high-quality construction.
The Series Z Double-Support Flanged Output Planetary Gearbox delivers unmatched performance in heavy-duty industrial settings, combining high torque, low backlash, and vibration-resistant stability. Ideal for sectors like mining, steel processing, construction, and renewable energy, it ensures smooth, reliable operations even under the most demanding conditions.
