Industrial gearbox for Marine Applications

Industrial gearbox for Marine Application : Comprehensive Guide to Types, Applications, and Why Planetary Gearboxes

In the demanding marine industry, Industrial gearbox for Marine Application are critical for power transmission, ensuring reliable operation of vessels and offshore equipment under harsh conditions like high torque demands, saltwater corrosion, vibration, and extreme weather. From propulsion systems to auxiliary machinery, gearboxes drive efficiency in applications such as ship propulsion, winches, and offshore cranes. This SEO-optimized guide explores various types of Industrial gearbox for Marine Application , their technical structures, advantages, and specific applications. While we cover a range of gearbox types—including planetary, helical, bevel, worm, spur, cycloidal, and more—planetary gearboxes for marine  (also known as epicyclic or solar gearboxes) stand out due to their unmatched torque density, compactness, and durability in marine environments. If you’re seeking insights on gearboxes for marine equipment, gearbox types in marine applications, or selecting the best Industrial gearbox Application in Marine operations, this article offers technical depth, real-world examples, and practical advice to optimize marine machinery.

By leveraging the strengths of different industrial gearboxes, marine engineers can enhance vessel performance, reduce downtime, and achieve cost savings in challenging conditions like deep-sea operations, offshore oil rigs, or coastal shipping. Drawing on industry standards like ISO 6336 for gear load calculations, we highlight how these gearboxes contribute to reliability, energy efficiency, and sustainability. With planetary gearboxes as a leading solution for high-performance marine needs, we emphasize their superiority in this sector.

Industrial gearbox for Marine Application

Table of Contents Industrial Gearbox for Marine Application

Close-up view of an industrial gearbox, highlighting its robust components and engineering for heavy-duty applications.

Overview of Industrial Gearbox for Marine Application Types Used in the Marine Industry

  1. Planetary Gearboxes: Renowned for high torque in compact designs, ideal for space-constrained marine propulsion systems.
  2. Helical Gearboxes: Versatile with smooth operation, suitable for moderate to high loads in auxiliary systems.
  3. Bevel Gearboxes: Effective for directional power transmission, used in steering and thruster systems.
  4. Worm Gearboxes: Offer high reduction ratios and self-locking, critical for winches and hoists.
  5. Spur Gearboxes: Simple and cost-effective for basic applications, though less common due to noise.
  6. Cycloidal Gearboxes: Provide shock resistance and precision, emerging in advanced marine automation.
  7. Other Types: Hypoid, harmonic drive, and parallel shaft gearboxes serve niche roles in specialized marine equipment.

While all these gearboxes have applications, planetary gearboxes consistently outperform others in the marine industry’s demanding conditions, offering superior efficiency and adaptability. Let’s dive into each type, starting with the standout planetary gearbox.



Advanced planetary gearbox for marine applications

Industrial gearbox for Marine Application &Planetary Gearboxes:
The Premier Choice for Marine Applications – Technical Structure and Operating Principles

Planetary gearboxes, also called epicyclic or solar gearboxes, are engineered for exceptional torque density and compactness, making them the top choice for marine applications where space, weight, and performance are critical. Their structure includes a central sun gear linked to the input shaft, multiple planet gears (typically 2-6 for optimal load distribution) orbiting the sun and held by a carrier, and an outer ring gear with internal teeth acting as the housing.

The design’s strength lies in its multi-point load distribution: the sun gear drives the planet gears, which mesh with both the sun and ring, enabling gear ratios up to 10:1 per stage (or 1000:1+ in multi-stage setups). This provides precise speed reduction and torque amplification—up to 1,000,000 Nm in industrial models—ideal for marine systems like main propulsion or heavy-duty winches handling loads exceeding 100 tons.

Technically, planetary gearboxes achieve efficiencies of 95-98%, driven by low friction and even load sharing. Constructed from corrosion-resistant materials like stainless steel or coated alloys, they incorporate EP-additive lubrication and IP68-rated seals to withstand saltwater exposure, humidity, and temperatures from -30°C to +80°C, common in Arctic shipping routes or tropical offshore platforms. The gear ratio formula [(Ring Teeth + Sun Teeth) / Sun Teeth] when the ring is fixed allows precise customization for tasks like variable-speed propulsion.

Brands like Bonfiglioli and SEW-Eurodrive offer modular planetary gearboxes tailored for marine use, integrating with diesel engines, electric motors, or hydraulic systems. Their ability to handle shock loads up to 5x nominal torque minimizes failures in turbulent seas, while IoT-enabled predictive maintenance enhances reliability for long voyages.

Advantages of Industrial gearbox for Marine Application

Planetary gearboxes excel in marine applications due to their unique advantages, often surpassing other types:

    • Unmatched Torque Density and Compactness: Delivering up to 1,000,000 Nm in a 50% smaller footprint than alternatives, they’re perfect for tight engine rooms or offshore cranes.
    • Superior Durability in Harsh Conditions: Anti-corrosion coatings and sealed designs resist saltwater and humidity, offering 15,000+ hours of service life, outlasting helical or worm gearboxes.
    • High Energy Efficiency: 95%+ efficiency reduces fuel consumption by 20-30%, critical for sustainable marine operations and reducing emissions.
    • Versatile Configurations: Multi-stage designs, flexible mounting (horizontal/vertical/angled), and motor compatibility suit diverse marine systems.
    • Low Noise and Vibration: Load sharing keeps noise <65 dB, enhancing crew comfort, and minimizes wear in high-vibration environments.
    • Robust Shock Resistance: Built-in overload protection handles dynamic sea conditions, preventing downtime.

Aligned with ISO 6336 and DNV-GL standards, planetary gearboxes ensure reliability in cost-sensitive marine operations.

Specific of Industrial gearbox for Marine Application

Planetary gearboxes shine across marine applications, often outperforming alternatives:

  • Propulsion Systems: High-torque units (500,000 Nm) with ratios up to 50:1 drive ship propellers, optimizing speed for cargo vessels or ferries.
  • Winches and Hoists: Compact designs lift 60+ tons on offshore platforms, with auto-brakes for safety in oil rig operations.
  • Thrusters and Steering: Ratios of 10:1-20:1 ensure precise azimuth thruster control, enhancing vessel maneuverability in ports.
  • Pumps and Deck Machinery: Regulate water or fuel pumps and power cranes, resisting saltwater corrosion.
  • Dredging Equipment: Deliver torque for cutter heads in sand or gravel dredging, handling shock loads.

Their edge comes from superior performance in compact, high-torque scenarios compared to helical (bulkier) or worm (less efficient) gearboxes.

Planetary gearbox designed for marine propulsion systems

Type of Planetary Gearbox & Industrial gearbox for Marine Application

Bevel Gearboxes in the Marine Industry

Bevel gearboxes use conical gears for 90° power redirection, with ratios up to 6:1, torque to 100,000 Nm, and efficiency of 90-92%. Advantages: Compact for angled drives, corrosion-resistant. Applications: Steering gears, thruster drives, and anchor systems. Limitations: Less suitable for high-torque propulsion compared to planetary.

Worm Gearboxes in the Marine Industry

Worm gearboxes offer high ratios (up to 100:1), torque to 50,000 Nm, and self-locking, with efficiency of 50-90%. Advantages: Compact, safety-critical locking. Applications: Winches, mooring systems, and slow-speed pumps. Limitations: Lower efficiency and heat issues make them secondary to planetary gearboxes.

Spur Gearboxes in the Marine Industry

Spur gearboxes feature straight teeth, ratios up to 10:1, torque to 200,000 Nm, and efficiency of 94-98%. Advantages: Cost-effective, simple maintenance. Applications: Basic pumps and fans. Limitations: Noisier, less smooth than planetary or helical.

Cycloidal Gearboxes in the Marine Industry

Cycloidal gearboxes use eccentric cams for ratios up to 100:1, torque to 500,000 Nm, and efficiency of 90-95%. Advantages: Shock resistance, precision. Applications: Automated deck equipment, robotic arms. Limitations: Higher cost; planetary often preferred for similar benefits.

Other Industrial Gearboxes in the Marine Industry

  • Hypoid Gearboxes: Offset bevel designs for high-torque angled drives in bow thrusters.
  • Harmonic Drive Gearboxes: High-precision for marine robotics.
  • Parallel Shaft Gearboxes: Helical variants for auxiliary power systems.

These niche types complement but rarely outshine planetary gearboxes in core marine roles.

Industrial gearbox for Marine Application & Comparison of Industrial Gearboxes in the Marine Industry

Gearbox Type

Torque (Max Nm)

Efficiency

Compactness

Best Marine Use

Key Limitation

Planetary

1,000,000

>95%

High

Propulsion, winches

Higher cost

Helical

500,000

90-95%

Moderate

Auxiliary systems

Larger size

Bevel

100,000

90-92%

High

Steering, thrusters

Limited ratios

Worm

50,000

50-90%

High

Winches, mooring

Low efficiency

Spur

200,000

94-98%

Low

Basic pumps

Noisy

Cycloidal

500,000

90-95%

High

Automation

Costly

Maintenance, Selection, and Future Trends for Industrial Gearboxes in the Marine Industry

Regular lubrication, corrosion checks, and vibration monitoring are crucial. Select gearboxes based on torque, saltwater resistance, and space constraints—planetary excels for high-performance needs. Future trends include smart sensors, lightweight composites, and IoT for autonomous vessels, with planetary gearboxes leading innovation.

Key Marine Machinery:

Detailed Introductions, Optimal Gearbox Recommendations, and Selection Considerations for the Marine Industry

In the marine industry, a diverse range of specialized machinery is critical for efficient vessel operation, offshore exploration, and cargo handling. Each piece of equipment operates under extreme conditions, such as high torque demands, saltwater corrosion, vibrations, and fluctuating temperatures, necessitating robust power transmission systems like industrial gearboxes to ensure reliability and performance. Below, we introduce key marine devices one by one, highlighting their features, the optimal gearbox type (with a strong emphasis on planetary gearbox for marine  due to their superior torque density, compactness, and durability in harsh marine environments), gearbox features, and critical factors to consider when selecting a gearbox. This section complements our comprehensive guide to industrial gearboxes in the marine industry, providing practical insights for marine engineers and operators aiming to optimize machinery longevity and efficiency. By prioritizing planetary gearboxes—known for their high efficiency (>95%), multi-stage configurations, and ability to handle shock loads up to 5x nominal torque—we underscore their role as the premier choice for many marine applications, aligning with industry standards like ISO 6336 and DNV-GL.

Key marine machinery for ship propulsion and operations
Essential marine machinery designed for reliable performance at sea

1. Propulsion Systems (Main and Auxiliary)

Propulsion systems drive vessels like cargo ships, ferries, and offshore supply vessels, delivering power to propellers for navigation in open seas or confined ports.
Recommended Gearbox Type: Planetary or helical gearboxes. Planetary suits high-torque, compact propulsion; helical fits moderate loads with cost efficiency.
Features of the Device: Power outputs up to 50 MW, variable speed control (100-300 RPM), corrosion-resistant components, and integration with diesel or electric engines for vessels like container ships.
Features of the Gearbox:

  • Planetary: Ratios up to 50:1, torque to 1,000,000 Nm, efficiency >95%, IP68 seals for saltwater resistance, suitable for -20°C to +80°C.
  • Helical: Ratios up to 100:1, torque to 500,000 Nm, efficiency 90-95%, corrosion-resistant with simpler maintenance.

Selection Considerations: Prioritize torque for heavy vessels; ensure corrosion resistance and shock load tolerance (up to 3x nominal) for rough seas; match to motor type (electric/hydraulic); planetary for compact engine rooms, helical for cost savings in larger spaces.

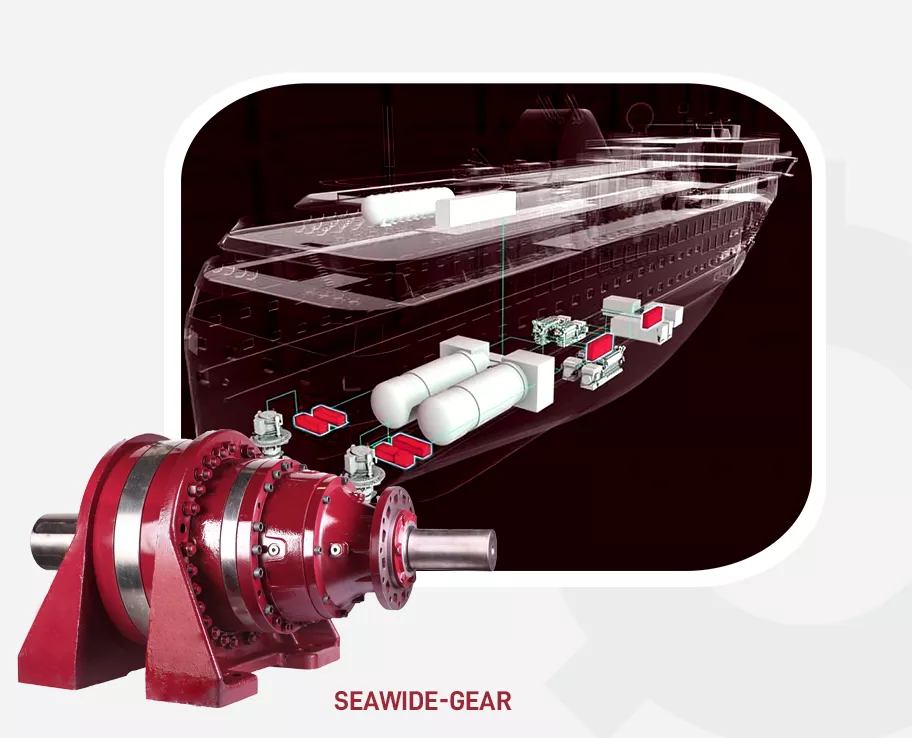

Industrial gearbox in marine propulsion system

2. Winches and Hoists (Anchor and Mooring)

Winches and hoists manage anchoring, mooring, and cargo lifting on ships and offshore platforms, critical for securing vessels or handling oil and gas loads.
Recommended Gearbox Type: Planetary or worm gearboxes. Planetary offers high torque in compact designs; worm provides self-locking for safety.
Features of the Device: Load capacities up to 60 tons, line speeds of 10-20 m/min, hydraulic/electric drives, and safety brakes for rough seas.
Features of the Gearbox:

  • Planetary: Ratios up to 100:1, torque to 400,000 Nm, efficiency >95%, corrosion-resistant with IP68 seals.
  • Worm: Ratios up to 100:1, torque to 50,000 Nm, efficiency 50-90%, self-locking for load security.

Selection Considerations: Focus on safety (worm’s self-locking for mooring, planetary’s brakes for heavy lifts); ensure corrosion resistance; planetary for high-torque needs, worm for low-speed, safety-critical tasks; evaluate service life (>12,000 hours).

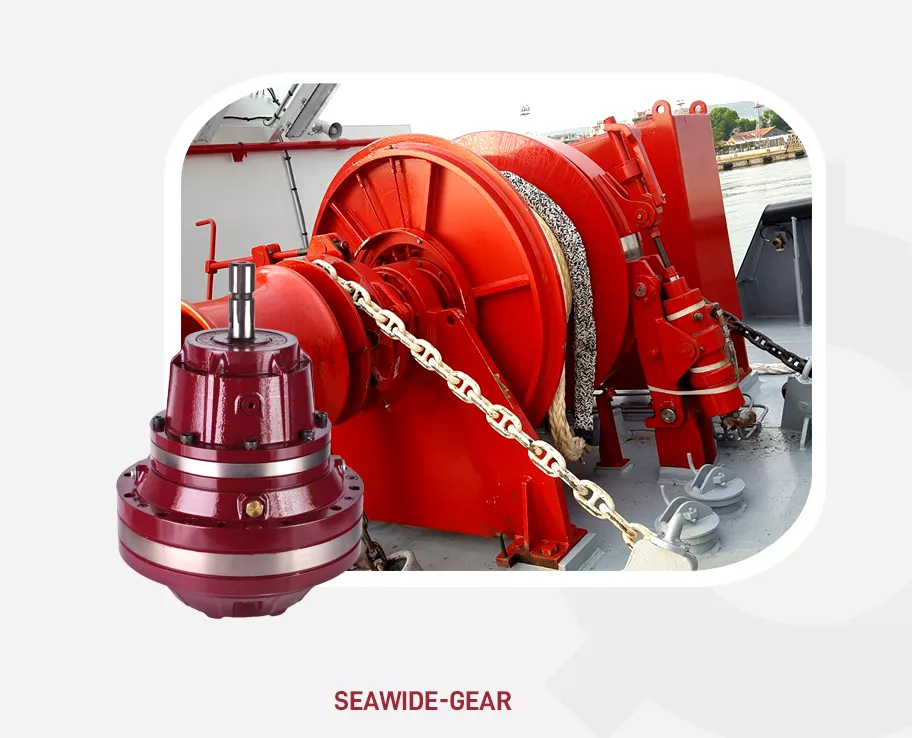

Industrial gearbox in marine anchor winch system

3. Deck Cranes (Cargo and Offshore)

Deck cranes lift cargo or equipment on vessels and platforms, essential for loading/unloading containers or drilling gear.
Recommended Gearbox Type: Planetary or helical gearboxes. Planetary excels in high-torque, compact lifting; helical suits moderate loads with affordability.
Features of the Device: Lifting capacities up to 100 tons, boom lengths to 50 meters, 360° rotation, hydraulic systems for precision.
Features of the Gearbox:

  • Planetary: Ratios 10:1-50:1, torque to 500,000 Nm, efficiency >95%, lightweight alloys for durability.
  • Helical: Ratios 10:1-50:1, torque to 500,000 Nm, efficiency 90-95%, cost-effective with corrosion resistance.

Selection Considerations: Assess radial/axial load handling; prioritize corrosion resistance; planetary for compact, high-torque cranes, helical for larger setups with budget constraints; ensure hydraulic integration.

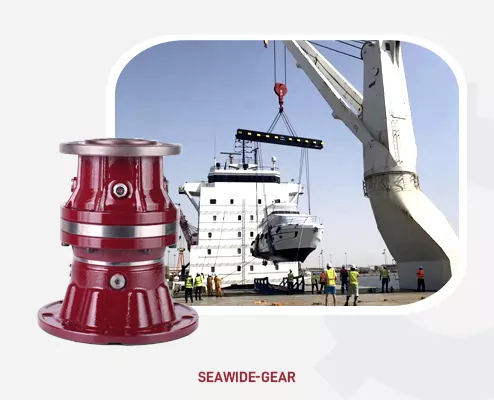

Industrial gearbox in marine deck crane for cargo handling

 4. Thrusters (Azimuth and Bow)

Thrusters enhance vessel maneuverability for docking or dynamic positioning in offshore operations like drillships.
Recommended Gearbox Type: Planetary or bevel gearboxes. Planetary offers high torque and precision; bevel suits directional changes.
Features of the Device: Thrust up to 1,500 kN, 360° rotation, electric/hydraulic drives, dynamic positioning systems.
Features of the Gearbox:

  • Planetary: Ratios 5:1-20:1, torque to 300,000 Nm, efficiency >95%, robust cooling for continuous use.
  • Bevel: Ratios up to 6:1, torque to 100,000 Nm, efficiency 90-92%, compact for angled drives.

Selection Considerations: Focus on precision and corrosion resistance for submerged parts; planetary for high-torque thrusters, bevel for directional efficiency; integrate with electronic controls; ensure low maintenance.

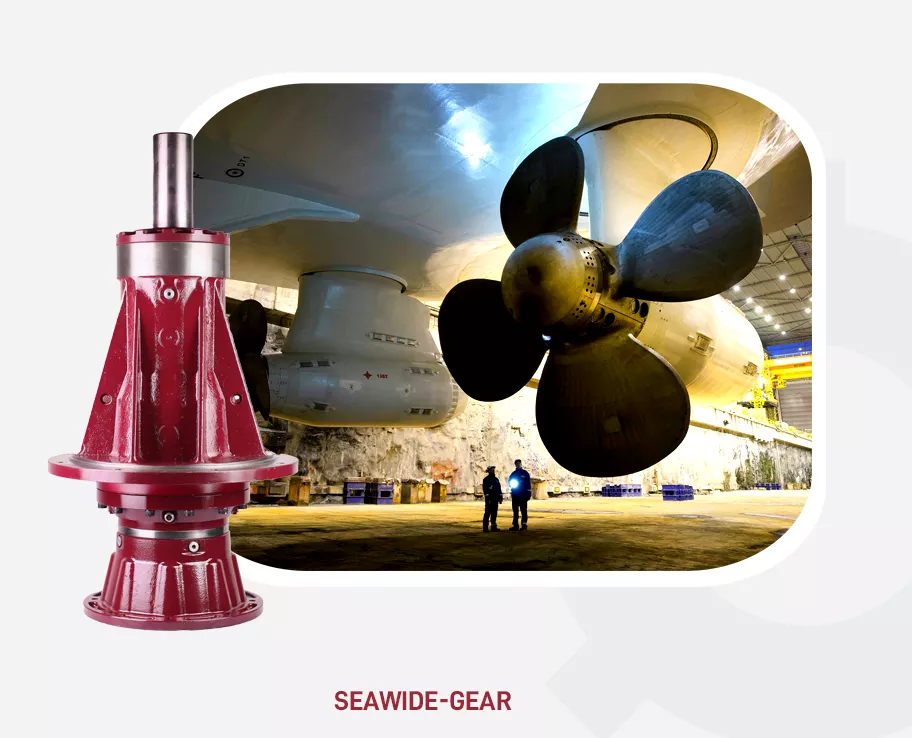

Industrial gearbox powering azimuth and bow thruster systems

5. Dredgers (Cutter Suction and Hopper)

Dredgers remove sediment or gravel for port maintenance, reclamation, or mineral extraction in abrasive underwater conditions.
Recommended Gearbox Type: Planetary or cycloidal gearboxes. Planetary provides high torque; cycloidal offers shock resistance.
Features of the Device: Cutter heads up to 3 meters, dredging depths to 30 meters, pump capacities >5,000 m³/hour, robust frames.
Features of the Gearbox:

  • Planetary: Ratios up to 30:1, torque to 400,000 Nm, efficiency >95%, sealed for slurry resistance.
  • Cycloidal: Ratios up to 100:1, torque to 500,000 Nm, efficiency 90-95%, high shock absorption.

Selection Considerations: Prioritize torque for cutting; ensure slurry-resistant seals; planetary for compact, high-torque drives, cycloidal for shock-heavy tasks; assess abrasion resistance.

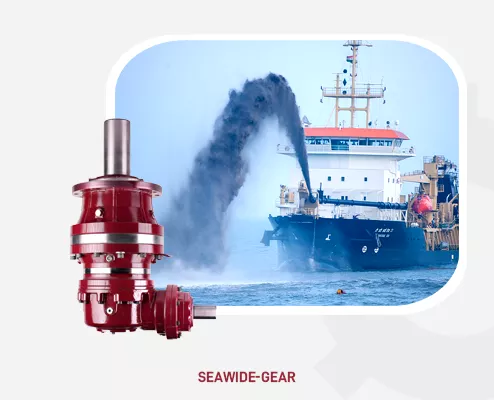

Industrial gearbox in marine cutter suction and hopper dredgers

Be Best with SEAWIDE Gear

6. Pumps (Bilge, Ballast, and Slurry)

Pumps manage fluids like bilge water, ballast, or slurry for vessel stability and processing.
Recommended Gearbox Type: Planetary or helical gearboxes. Planetary ensures reliability in compact spaces; helical offers cost-effective performance.
Features of the Device: Flows up to 10,000 m³/hour, corrosion-resistant impellers, centrifugal/submersible designs, automated controls.
Features of the Gearbox:

  • Planetary: Ratios 5:1-15:1, torque to 100,000 Nm, efficiency >95%, IP68 seals.
  • Helical: Ratios 5:1-15:1, torque to 100,000 Nm, efficiency 90-95%, simpler maintenance.

Selection Considerations: Focus on corrosion/abrasion resistance; match to fluid viscosity; planetary for tight compartments, helical for cost savings; ensure energy efficiency.

Industrial gearbox in marine bilge, ballast, and slurry pumps

7. Deck Machinery (Capstans and Windlasses)

Capstans and windlasses handle ropes or chains for mooring and anchoring.
Recommended Gearbox Type: Planetary or worm gearboxes. Planetary for high torque, worm for self-locking.
Features of the Device: Line pulls up to 30 tons, speeds 10-15 m/min, hydraulic/electric drives, compact deck integration.
Features of the Gearbox:

  • Planetary: Ratios 20:1-50:1, torque to 200,000 Nm, efficiency >95%, corrosion-resistant.
  • Worm: Ratios up to 100:1, torque to 50,000 Nm, efficiency 50-90%, self-locking.

Selection Considerations: Emphasize torque and corrosion resistance; planetary for heavy pulls, worm for safety-critical tasks; select for low noise (<70 dB); prioritize easy maintenance.

Industrial gearbox in marine capstans and windlasses

8. Ventilation Systems (Marine HVAC and Engine Room Fans)

Ventilation systems maintain air quality and cooling in engine rooms and crew areas.
Recommended Gearbox Type: Helical or planetary gearboxes. Helical for cost-effective performance, planetary for compact efficiency.
Features of the Device: Airflows up to 50,000 m³/hour, corrosion-resistant blades, variable speeds, explosion-proof designs.
Features of the Gearbox:

  • Helical: Ratios 5:1-10:1, torque to 50,000 Nm, efficiency 90-95%, low noise.
  • Planetary: Ratios 5:1-10:1, torque to 50,000 Nm, efficiency >95%, compact.

Selection Considerations: Focus on efficiency and noise reduction (<70 dB); ensure corrosion resistance; helical for larger spaces, planetary for tight compartments; prioritize explosion-proofing.

Industrial gearbox in marine HVAC and engine room fan systems

9. Fishing Equipment (Net Haulers and Trawl Winches)

Net haulers and trawl winches support commercial fishing vessels, handling heavy nets or trawls.
Recommended Gearbox Type: Planetary or worm gearboxes. Planetary for high torque, worm for self-locking.
Features of the Device: Pull capacities up to 20 tons, line speeds 5-10 m/min, hydraulic drives, automated controls.
Features of the Gearbox for Marine:

  • Planetary: Ratios 30:1-50:1, torque to 200,000 Nm, efficiency >95%, explosion-proof.
  • Worm: Ratios up to 100:1, torque to 50,000 Nm, efficiency 50-90%, self-locking.

Selection Considerations: Prioritize torque and corrosion resistance; planetary for heavy nets, worm for safety; integrate with hydraulics; ensure low-maintenance designs.
This overview equips marine professionals with balanced knowledge to select suitable gearboxes for enhanced vessel performance. Contact specialists like Bonfiglioli for tailored gearbox solutions.

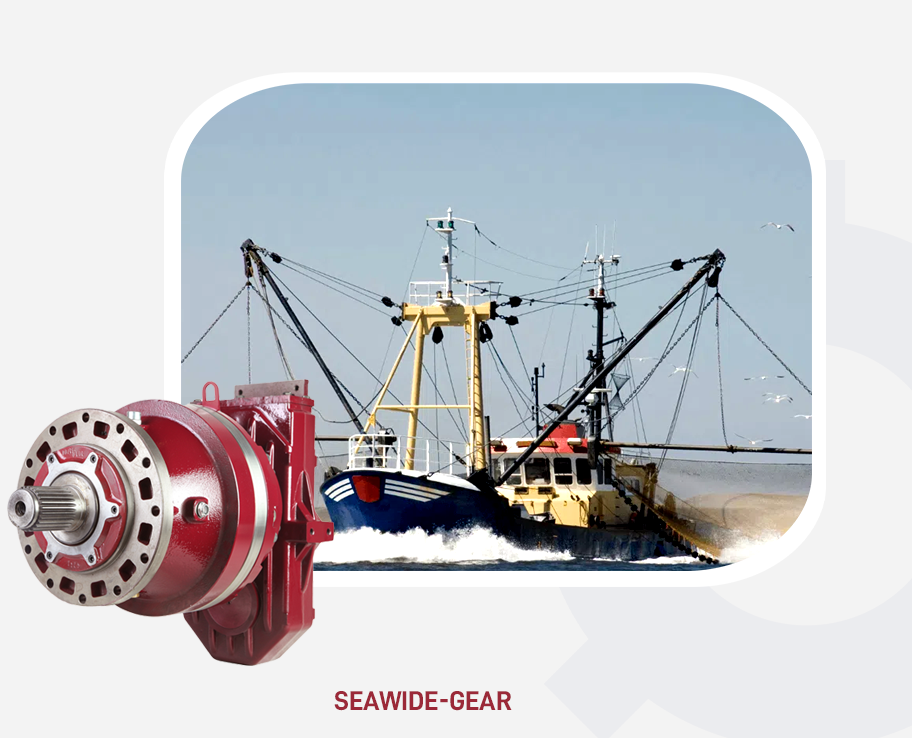

Industrial gearbox in marine net haulers and trawl winches

Frequently
Asked Questions

Planetary gearboxes offer unmatched torque density, durability (>15,000 hours with anti-corrosion coatings), >95% efficiency, low noise (<65 dB), and shock resistance (up to 5x nominal torque). Compared to helical (bulkier) or worm (50–90% efficiency), they excel in compact, high-torque marine applications like propulsion and winches, aligning with ISO 6336 and DNV-GL standards.

A planetary (or epicyclic) gearbox features a central sun gear, 2–6 planet gears, and an outer ring gear, enabling multi-point load distribution. It delivers gear ratios up to 10:1 per stage (1000:1+ in multi-stage) and torque up to 1,000,000 Nm. Its high torque density, compactness (50% smaller than alternatives), >95% efficiency, and corrosion-resistant materials (with IP68 seals) make it perfect for harsh marine conditions, reducing fuel consumption by 20–30%.

They power propulsion systems (500,000 Nm for ship propellers), winches/hoists (lifting 60+ tons on offshore platforms), thrusters (10:1–20:1 ratios for precise maneuvering), pumps, deck cranes, and dredging equipment. Their corrosion and shock resistance outperform bevel or spur gearboxes in demanding marine tasks.

Key features include corrosion-resistant materials, advanced sealing systems, vibration resistance, and high-quality lubrication.



Important parameters are torque capacity, gear ratio, input speed, power rating, and compatibility with propulsion design.



The self-locking design prevents reverse motion, ensuring stability and safety when lifting or holding heavy loads.



By using planetary or bevel-helical gearboxes, operators achieve high torque output while maintaining a compact footprint.



Regular lubrication, seal inspections, vibration monitoring, and corrosion prevention are critical for long-term reliability.



How to find the gearbox I need?

Submit your request and get a response in the shortest time possible



Create your own

Expert consultation with engineers and sales specialists to select the product suited to your industrial needs
