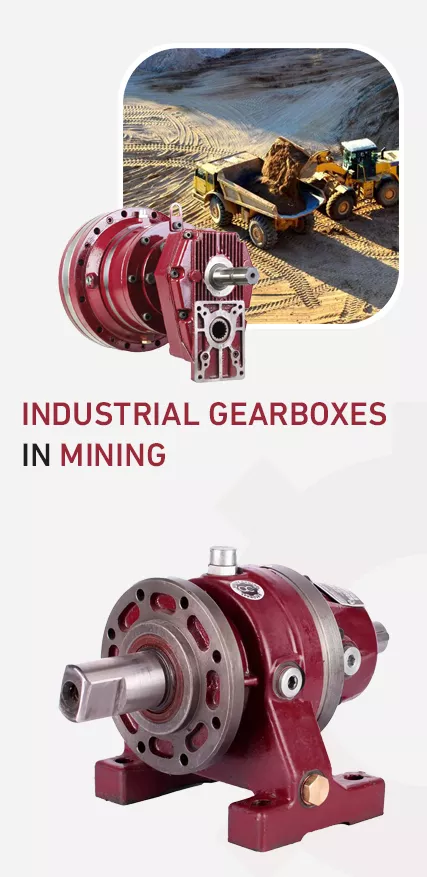

In the rigorous realm of heavy , industrial gearboxes are pivotal for power transmission, enabling machinery to function reliably under severe conditions like high loads, abrasive dust, moisture, and extreme temperatures. The mining industry, in particular, relies heavily on these gearboxes for processes ranging from ore extraction and material handling to mineral processing and transportation. This SEO-optimized, in-depth guide explores various types of industrial gearboxes in mining, their technical structures, advantages, and specific applications. While we’ll cover a broad spectrum of gearbox types—including planetary, helical, bevel, worm, spur, cycloidal, and more— planetary gearboxes (also known as solar or epicyclic gearboxes), which excel in mining due to their unmatched torque density, compactness, and durability. If you’re searching for insights on industrial gearboxes for mining equipment, gearbox types in mining applications, or selecting the best gearbox for mining operations, this article provides technical depth, real-world examples, and practical advice to help optimize your mining machinery.
By understanding the strengths of different industrial gearboxes, mining professionals can enhance efficiency, minimize downtime, and achieve cost savings in challenging environments such as open-pit coal mines, underground gold operations, or copper processing facilities. Drawing on industry standards like ISO 6336 for gear load calculations, we’ll highlight how these gearboxes contribute to sustainability, energy efficiency, and long-term reliability. As a leading option for mining, planetary gearboxes often emerge as the top choice for high-performance needs, and we’ll delve into why they deserve priority in your selection process..
Industrial Gearbox for Mining Applications come in various designs, each tailored to specific needs in the mining sector. Here’s a comprehensive introduction to the main types:
While all these gearboxes have their place, planetary gearboxes frequently outperform others in mining’s harsh conditions, offering superior efficiency and adaptability. Let’s explore each type in detail, starting with the standout planetary gearbox.
Planetary Gearboxes: The Premier Choice for Mining – Technical Structure and Operating Principles
Planetary gearboxes, or epicyclic/solar gearboxes, are engineered for exceptional torque density and compactness, making them the go-to solution for demanding mining applications where space and performance are critical. Their structure features a central sun gear connected to the input shaft, multiple planet gears (typically 2-6 for enhanced load sharing) orbiting the sun and held by a carrier, and an outer ring gear with internal teeth serving as the housing.
The ingenuity of planetary design lies in its multi-point load distribution: Rotation of the sun gear drives the planets, which engage both the sun and ring, allowing for gear ratios up to 10:1 per stage (or 1000:1+ in multi-stage setups). This enables precise speed reduction with massive torque amplification—up to 1,000,000 Nm in industrial models—perfect for mining equipment like heavy-duty mills or loaders handling ore loads exceeding 100 tons.
Technically, planetary gearboxes achieve efficiencies over 95-98%, thanks to minimal friction, uniform load sharing, and advanced materials like case-hardened alloy steel. They incorporate EP-additive lubrication systems and robust seals to combat mining’s dust, moisture, and temperature extremes (-30°C to +100°C in some models). Mathematical foundations, such as the gear ratio formula [(Ring Teeth + Sun Teeth) / Sun Teeth] when the ring is fixed, empower engineers to customize for mining-specific tasks, like variable-speed drilling in hard rock.
In practice, renowned brands like Bonfiglioli and SEAWIDE offer modular planetary gearboxes optimized for mining, integrating seamlessly with electric, hydraulic, or diesel drives. Their ability to handle shock loads up to 5x nominal torque sets them apart, reducing failure rates in volatile mining environments. Recent advancements, including IoT-enabled monitoring for predictive maintenance, further solidify planetary gearboxes as the future-proof option for mining sustainability.
Planetary gearboxes dominate in mining due to their unparalleled benefits, often surpassing other types in efficiency and reliability:
Aligned with ISO 6336 and AGMA standards, planetary gearboxes minimize operational risks, making them indispensable for cost-sensitive mining operations.
Planetary gearboxes’ versatility shines across mining processes, often outperforming other types in high-demand scenarios:
Their superiority in these applications stems from handling extreme conditions better than helical (less compact) or worm (lower efficiency) gearboxes.
Advantages: Robust load handling, quiet operation (<75 dB), versatility, and cost-effectiveness. Applications: Conveyors (200,000 Nm for belts), crushers (15:1 ratios for iron ore), mills (low-speed drums), excavators, hoists, pumps, and screens.
While reliable, they require more space than planetary and have slightly lower efficiency.
Other Industrial Gearboxes in Mining
These niche types supplement but rarely replace planetary gearboxes in core mining roles.

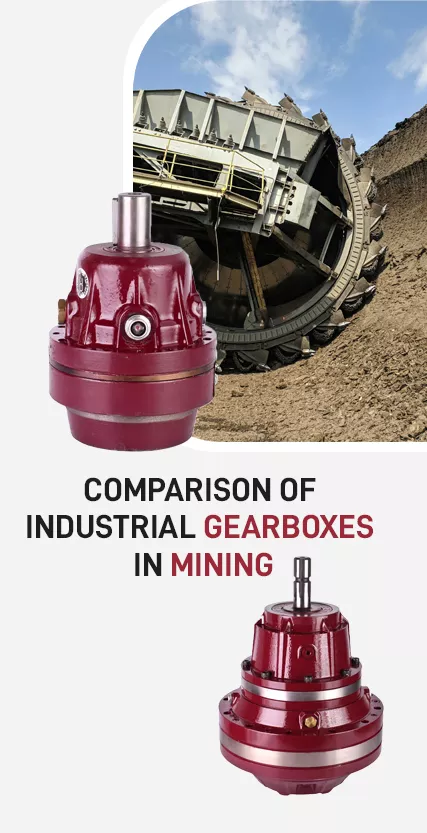

Gearbox Type | Torque (Max Nm) | Efficiency | Compactness | Best Mining Use | Key Limitation |
Planetary | 1,000,000 | >95% | High | High-torque, space-limited (mills, trucks) | Higher cost |
Helical | 500,000 | 90-95% | Moderate | Versatile loads (conveyors, crushers) | Larger size |
Bevel | 100,000 | 90-92% | High | Angled drives (drills) | Limited ratios |
Worm | 50,000 | 50-90% | High | Self-locking (hoists) | Low efficiency |
Spur | 200,000 | 94-98% | Low | Basic applications (pumps) | Noisy |
Cycloidal | 500,000 | 90-95% | High | Shock-resistant (automation) | Costly |
Key Mining Machinery: Detailed Introductions, Optimal Gearbox Recommendations, and Selection Considerations
In the mining industry, a wide array of specialized machinery is essential for efficient extraction, processing, and transportation of minerals. Each piece of equipment operates under extreme conditions, requiring robust power transmission systems like industrial gearboxes to ensure reliability and performance. Below, we introduce key mining devices one by one, highlighting their features, the optimal gearbox type (with a strong emphasis on planetary gearboxes due to their superior torque density, compactness, and durability in harsh environments), gearbox features, and critical factors to consider when selecting a gearbox. This section builds on our comprehensive guide to industrial gearboxes in mining, providing practical insights for engineers and operators aiming to optimize machinery longevity and efficiency. By prioritizing planetary gearboxes—known for their high efficiency (>95%), multi-stage configurations, and ability to handle shock loads up to 5x nominal torque—we underscore their role as the premier choice for many mining applications, aligning with industry standards like ISO 6336 and AGMA.

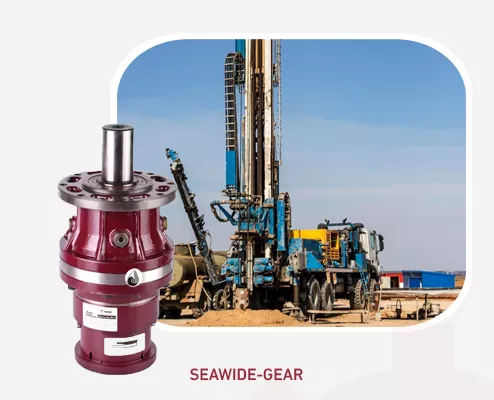

Drill rigs are among the most critical machines in mining and exploration, as they are responsible for creating boreholes used for blasting, sampling, and geotechnical investigations. These rigs must operate under some of the harshest conditions imaginable—hard rock formations such as granite, basalt, and quartzite, combined with extreme dust, high vibration levels, and continuous heavy loads that can exceed 50 tons. The reliability of the drive system, particularly the gearbox, is essential to ensure uninterrupted drilling cycles and to maintain productivity in both surface and underground operations.
Optimal Gearbox Type: Planetary gearbox, favored for its compact design and high torque output in rotary applications.
Features of the Device: High penetration rates (up to 50 m/hour), hydraulic or electric drives, variable speeds for different rock types, and mobility for open-pit or underground use.
Features of the Gearbox: Multi-stage planetary setups offer ratios up to 50:1, efficiencies >95%, and torque up to 200,000 Nm; sealed for dust resistance, with EP lubrication for -20°C to +80°C operations.
Selection Considerations: Focus on shock load capacity (up to 3x nominal) to handle sudden rock resistance; ensure compatibility with hydraulic motors; prioritize modular designs for easy maintenance in remote sites; calculate gear ratios based on drill bit speed requirements to avoid overheating or inefficiency.
By incorporating a planetary gearbox into drill rigs, operators benefit from greater reliability, precise torque control, higher penetration rates, and reduced maintenance needs—all of which are critical for achieving consistent drilling performance in challenging mining environments.

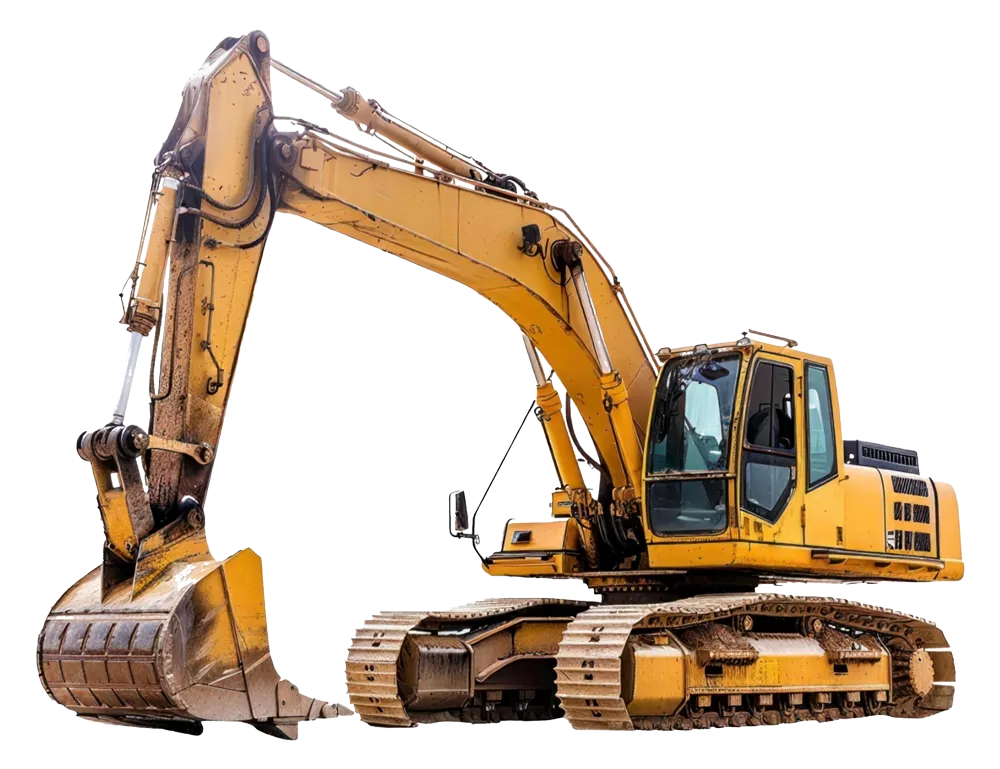

Excavators are among the most powerful and versatile machines used in mining operations, designed for large-scale earthmoving, digging, and material handling tasks. They play a vital role in both surface and underground mining, where hydraulic shovels and bucket-wheel excavators (BWEs) are commonly deployed to manage massive excavation volumes. In some applications, a single scoop can handle up to 100 tons of ore or overburden, making these machines essential for efficient mining logistics and productivity.
Excavators, including hydraulic shovels and large bucket-wheel variants, are used for digging and loading ore in surface and underground mines, managing massive earth movements up to 100 tons per scoop.
Optimal Gearbox Type: Planetary gearbox, ideal for boom rotation and travel mechanisms due to its high torque density and versatility.
Features of the Device: Powerful arms with buckets up to 50 m³ capacity, 360° rotation, tracked or wheeled mobility, and advanced hydraulics for precise control in coal or iron ore extraction.
Features of the Gearbox: Planetary-worm or pure planetary configurations provide ratios up to 100:1, torque to 500,000 Nm, and compact sizing for confined spaces; corrosion-resistant materials and sealed housings withstand moisture and abrasion.
Selection Considerations: Evaluate axial and radial load handling for arm swings; consider environmental factors like dust ingress—opt for IP67-rated seals; match gearbox to motor type (electric/hydraulic) for seamless integration; assess service life (>10,000 hours) to minimize downtime in high-cycle operations.
By utilizing planetary gearboxes in excavators, mining companies benefit from increased digging power, precise motion control, higher efficiency, and long-term durability, all of which are vital for maximizing productivity and minimizing operational costs in large-scale mining projects.

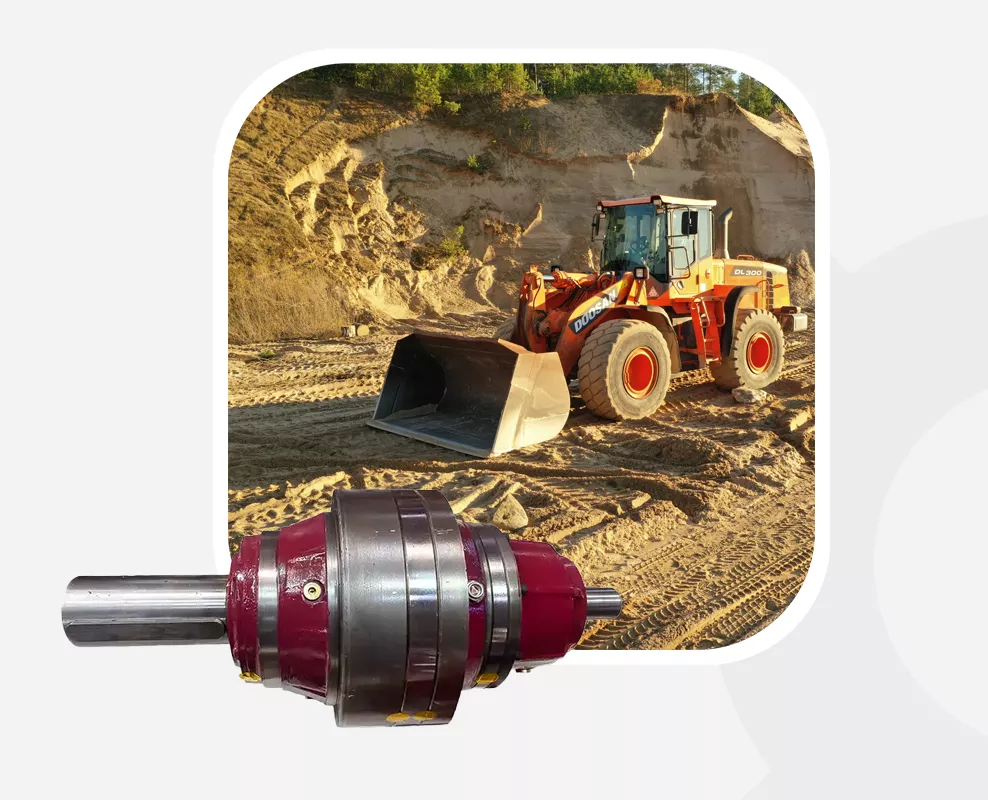

Loaders, including wheel loaders and load-haul-dump (LHD) machines, are indispensable in mining operations for transporting loose materials such as ore, coal, gravel, or overburden. They serve as the primary link between excavation and material transport, enabling fast and continuous loading of trucks, hoppers, or conveyors. Wheel loaders dominate open-pit mining due to their mobility and high payloads, while underground loaders are optimized for compact spaces, operating in tunnels with low ceilings and harsh ventilation conditions. These machines can handle payloads ranging from 10 to 100 tons, ensuring productivity even in the most demanding mining environments.
Optimal Gearbox Type:
Planetary gearboxes are the standard choice for loaders, excelling in drivetrains, axles, and swing mechanisms. Their compact structure allows integration into wheel hubs or central transmissions, delivering extremely high torque at low speeds. Multi-stage planetary drives provide the precise power needed for steep ramp climbing, fast loading cycles, and consistent performance under dynamic load changes.
Features of the Gearbox:
The loader devices feature bucket capacities ranging from 3 m³ in LHDs to 20 m³ in surface wheel loaders, combined with high mobility through all-wheel drive and articulated steering for precise maneuvering in confined underground tunnels. They achieve fast cycle times of under 30 seconds per load, ensuring high operational efficiency, while operator cabins are equipped with FOPS/ROPS safety standards, ergonomic controls, and climate control for harsh environments. Advanced hydraulic systems provide precise bucket control to minimize spillage and maximize fill factors, and the machines are built for durability under extreme conditions, including high vibration zones and continuous 24/7 operation.

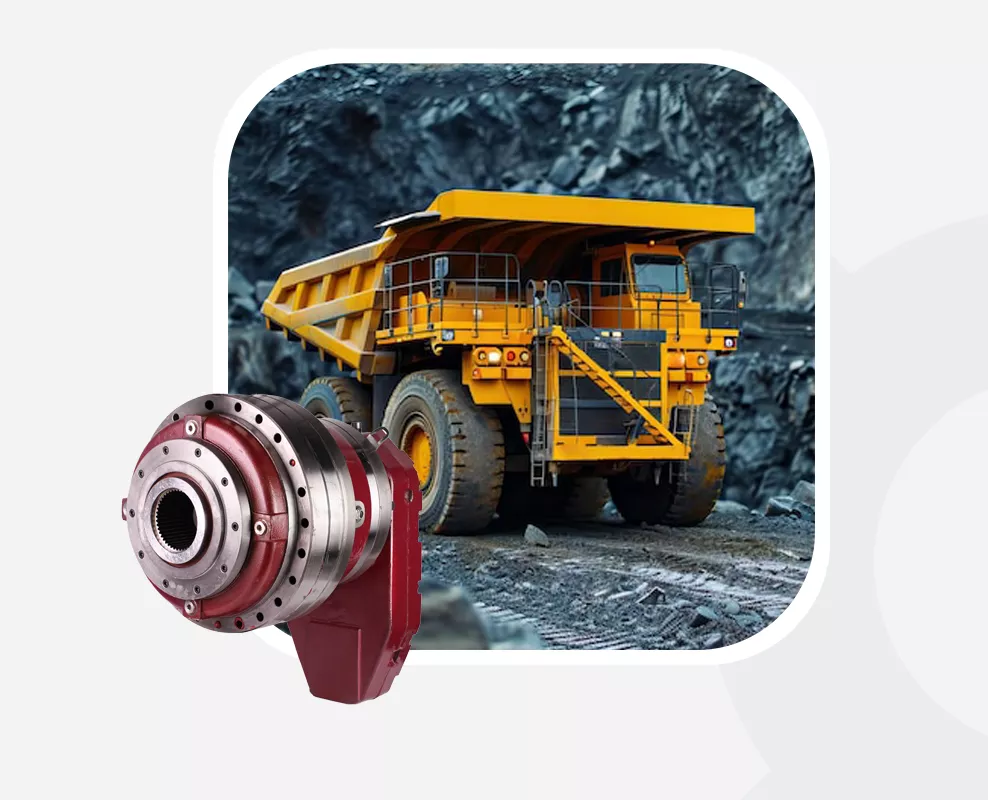

Large mining dump trucks are essential for transporting massive quantities of ore, waste rock, and overburden in open-pit and surface mining operations. With payload capacities exceeding 300 tons, these trucks are engineered to handle extreme loads while navigating steep gradients, rough terrain, and long haul distances. Modern designs include both rigid-frame and articulated-frame configurations, providing a balance between stability, maneuverability, and operational flexibility in confined or challenging mining sites. Many of these trucks utilize diesel-electric drive systems, offering efficient power distribution, while advanced models integrate payload sensors, telematics, and autonomous operation capabilities, enhancing both safety and productivity.
Dump trucks haul massive loads of ore or waste, with capacities exceeding 300 tons, navigating steep gradients in open-pit mines.
Optimal Gearbox Type: Planetary gearbox within automatic transmissions, providing reliable power shifts for heavy-duty hauling.
Features of the Device: Rigid or articulated frames for maneuverability, diesel-electric drives, payload sensors, and autonomous capabilities in modern models for safer operations.
Features of the Gearbox: Power-shift planetary types deliver torque up to 1,000,000 Nm, multi-speed configurations (6-10 gears), and robust cooling systems for continuous uphill hauls.
Selection Considerations: Focus on overload protection for sudden stops under load; integrate with CVT or automatic systems for smooth shifts; consider terrain—higher ratios for steep mines; evaluate maintenance intervals to avoid costly halts, favoring modular planetary designs.

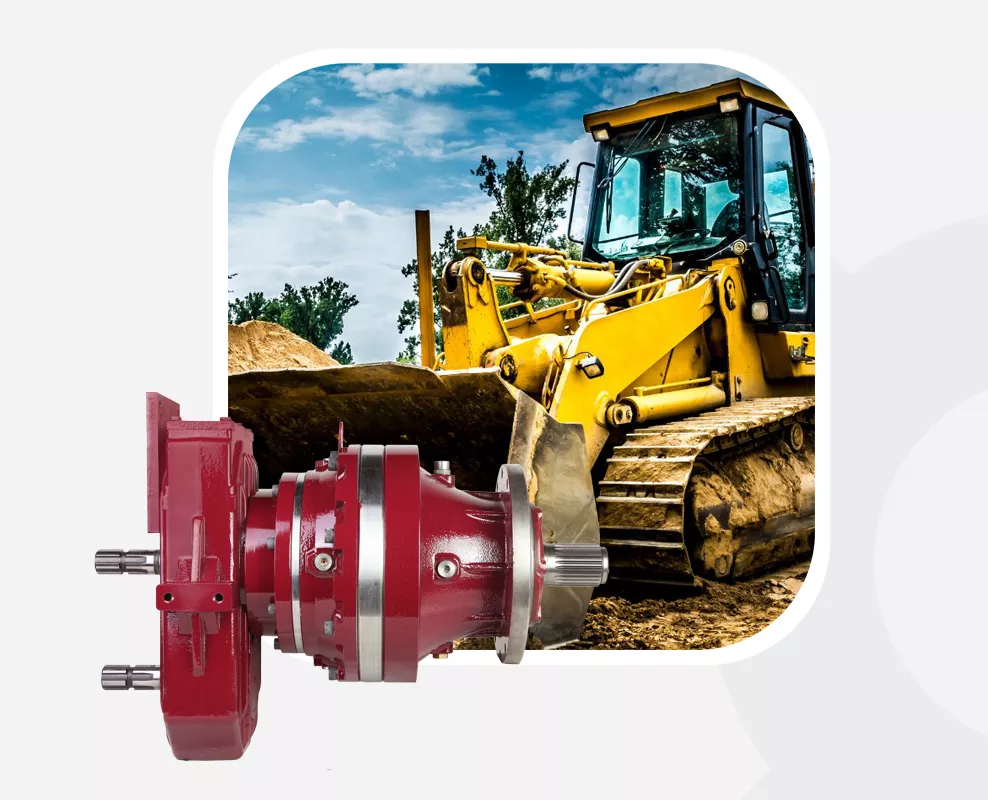

Large bulldozers, or dozers, are essential machines in mining and construction operations, designed to push soil, rock, ore, or debris for site preparation, road construction, and material leveling. With blades that can extend up to 10 meters wide, these machines move substantial volumes of material efficiently, supporting both surface mining operations and heavy civil works. Their capability to combine high traction, stability, and precision control makes them indispensable in tasks requiring continuous pushing of overburden or leveling of uneven terrain.
Optimal Gearbox Type: Planetary gearbox, suitable for track drives requiring high torque and precision control.
Features of the Device: Tracked chassis for stability, ripper attachments for hard ground, GPS-guided blades, and engines up to 600 HP for pushing 50+ tons.
Features of the Gearbox: Planetary setups with ratios up to 20:1, torque 300,000 Nm, and high shock resistance; integrated with hydrostatic drives for variable speeds.
Selection Considerations: Assess ground pressure and traction needs—planetary’s even load distribution prevents slippage; ensure thermal management for prolonged pushing; prioritize compatibility with electronic controls for automated mining.When choosing a gearbox for large bulldozers, engineers must assess ground pressure, traction requirements, and load distribution, as planetary gearboxes offer uniform stress handling that prevents track slippage. Thermal management is crucial to maintain performance during prolonged pushing cycles in high-temperature environments. Gearboxes should also be compatible with electronic and automated control systems for GPS-guided operations or semi-autonomous mining workflows. Reliability, ease of maintenance, and long service life are essential factors to reduce downtime and maximize productivity in harsh mining conditions.

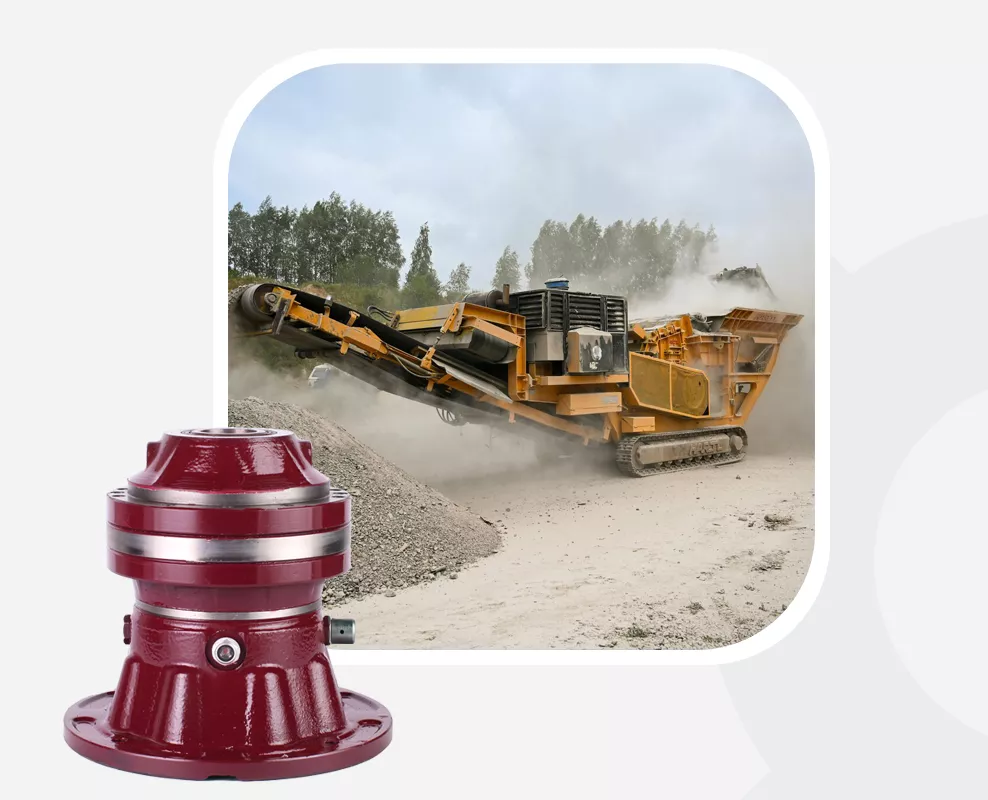

Crushers reduce large rocks into smaller aggregates, critical for processing minerals like limestone or iron ore.
Optimal Gearbox Type: Planetary gearbox, preferred for its ability to handle immense crushing forces in compact spaces.
Features of the Device: Feed openings up to 2 meters, throughput rates >1,000 tons/hour, adjustable settings for particle size, and mobile or stationary designs.
Features of the Gearbox: Bevel-planetary hybrids offer ratios 10:1 to 30:1, torque up to 500,000 Nm, and vibration reduction; hardened steel gears resist wear from abrasive materials.
Selection Considerations: Emphasize shock load tolerance (up to 3x nominal) for impact crushers; calculate power requirements based on rock hardness; opt for easy-lubrication systems to combat dust; consider noise levels (<70 dB) for worker safety.
Optimal Gearbox Type and Features:
For crusher drives, planetary gearboxes are the preferred choice due to their compact design, high torque density, and capability to handle extreme crushing forces. Depending on the crusher type, bevel-planetary hybrids or multi-stage planetary gearboxes are commonly applied. These gearboxes can provide reduction ratios from 10:1 to 30:1 and torque capacities up to 500,000 Nm, delivering reliable power to both jaw, cone, and impact crushers. Hardened steel gears and reinforced housings resist wear from abrasive rock and provide vibration reduction, protecting both the gearbox and the machine structure.
By integrating high-quality planetary gearboxes, crushers can operate safely, efficiently, and continuously under extreme conditions, achieving consistent particle size reduction while minimizing maintenance requirements and energy consumption. This makes gearbox selection a critical factor in the operational performance and lifecycle cost of mining and aggregate processing equipment.

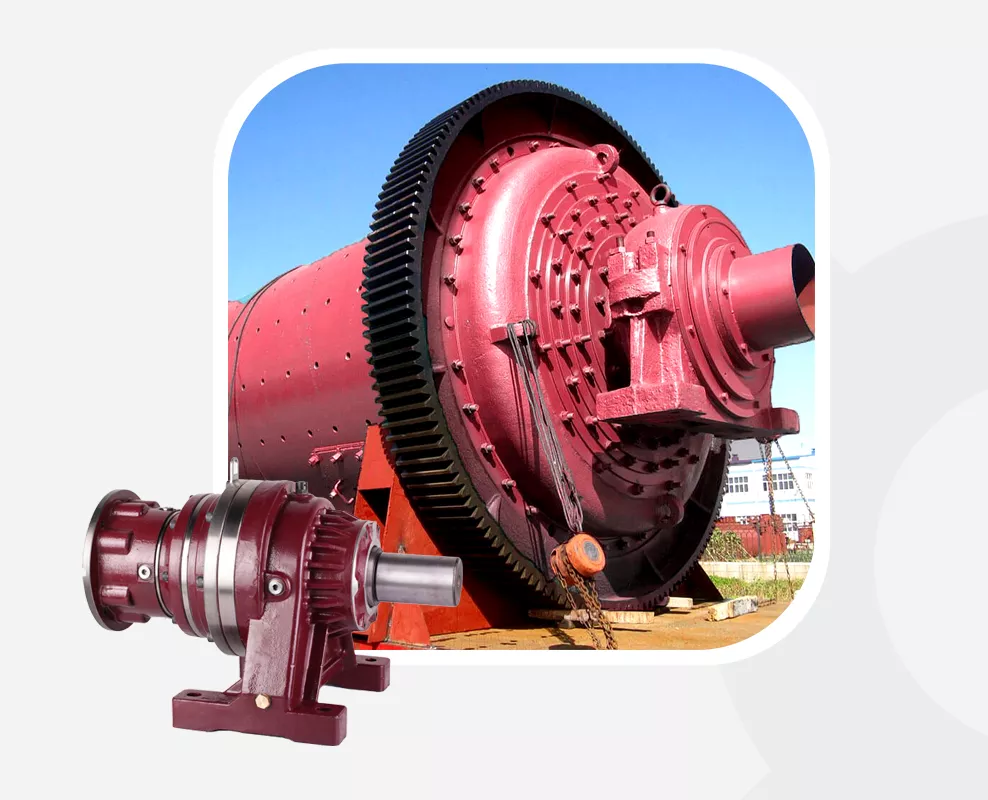

Grinding mills are critical machines in mineral processing plants, responsible for reducing ore to fine particles suitable for further beneficiation processes such as flotation or leaching. By using large rotating drums filled with grinding media (steel balls, rods, or autogenous ore), these mills break down raw material into a consistent powder, ensuring maximum mineral liberation. Their efficiency directly influences the recovery rate of valuable minerals, making them a cornerstone of mining operations.
Grinding mills pulverize ore into fine powder for further processing, using rotating drums filled with media.
Optimal Gearbox Type: Planetary gearbox, optimal for controlling massive drum rotations with high torque.
Features of the Device: Diameters up to 12 meters, capacities >10,000 tons/day, autogenous or ball media, and integrated classifiers for mineral separation.
Features of the Gearbox: Multi-stage planetary drives provide torque up to 1,000,000 Nm, low-speed ratios (10-20 RPM), and >95% efficiency; overload protection safeguards against jams.
Selection Considerations: Focus on torque for heavy cylinders; ensure alignment precision to avoid gear wear; integrate with variable frequency drives for speed control; evaluate lifecycle costs—planetary’s durability reduces replacements by 20-30%.
By equipping grinding mills with planetary gearboxes, mining operators benefit from increased reliability, higher efficiency, reduced downtime, and extended service life, all of which directly improve the productivity and profitability of mineral processing operations.

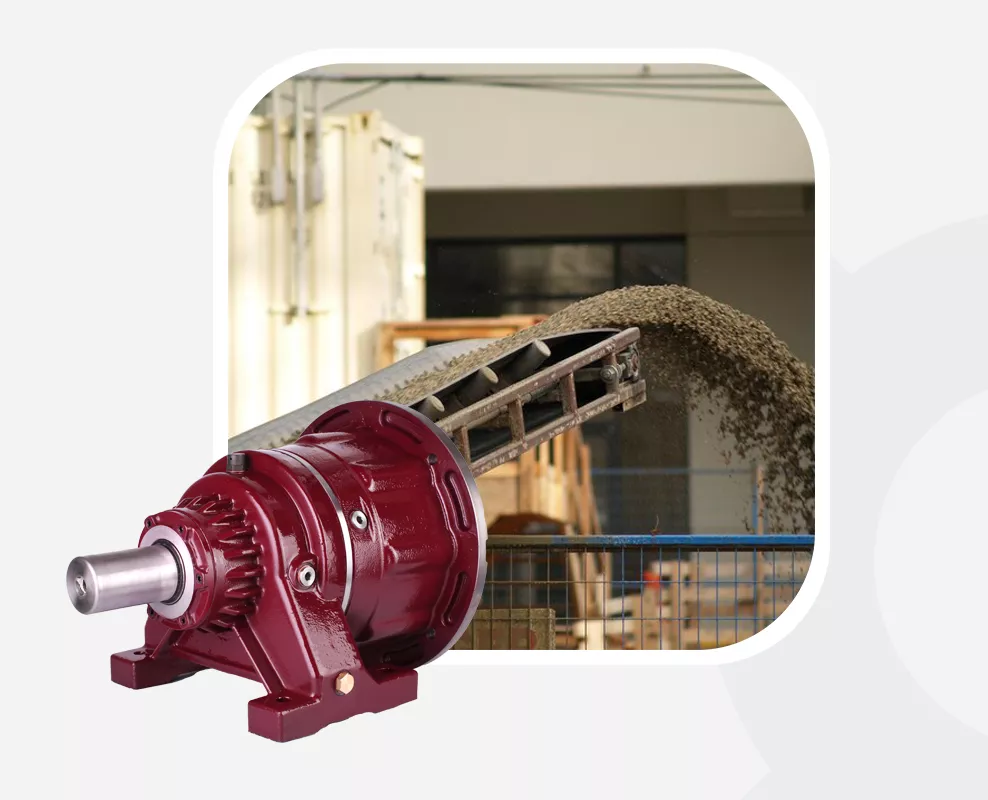

Conveyors transport bulk materials over long distances, essential for efficient mine logistics.
Optimal Gearbox Type: Planetary gearbox, though helical is common; planetary shines in heavy-duty, long-belt applications.
Features of the Device: Belt lengths up to 10 km, speeds 2-6 m/s, inclined or curved designs, and sensors for overload detection.
Features of the Gearbox: Planetary configurations offer starting torque up to 200,000 Nm, ratios 10:1-30:1, and sealed protection against dust.
Selection Considerations: Consider belt tension and length—planetary handles starts under load better; assess energy efficiency for long runs; ensure dust-proofing and easy access for maintenance.
Optimal Gearbox Type:
While both helical and planetary gearboxes are widely used in conveyor systems, the planetary gearbox stands out in heavy-duty, long-belt applications. Its compact design, high torque density, and ability to handle extreme loads make it especially effective where conveyors must start under heavy material loads or operate over steep inclines.
By choosing the right gearbox—preferably a planetary solution for long and heavy-duty conveyors—mining operations can achieve higher efficiency, reduced downtime, and extended equipment lifespan, ensuring smooth and reliable logistics throughout the mine site.
Hoists lift personnel, materials, or ore in shafts, vital for underground mining.
Optimal Gearbox Type: Planetary gearbox, excellent for high-torque lifting with compact design.
Features of the Device: Capacities up to 50 tons, speeds 10-20 m/s, safety brakes, and depth monitoring systems.
Features of the Gearbox: Planetary with ratios 30:1-50:1, torque 400,000 Nm, and self-locking options; damp-resistant for underground use.
Selection Considerations: Prioritize safety features like overload brakes; calculate based on depth and load; opt for low-maintenance designs in inaccessible shafts.
Optimal Gearbox Type:
The planetary gearbox is the most suitable choice for hoists and winches because of its ability to transmit extremely high torque within a compact and lightweight housing. Its multi-stage configuration allows smooth acceleration and deceleration, which is essential for safe lifting operations. In addition, planetary systems handle shock loads efficiently, ensuring stable performance even under sudden load variations common in mining shafts.
Features of the Device:
Modern hoisting systems are designed to handle capacities of up to 50 tons or more, with lifting speeds ranging from 10 to 20 meters per second depending on application requirements. For underground operations, advanced safety systems are integrated, such as emergency and overload brakes, depth and speed monitoring devices, and redundant control mechanisms to prevent accidents. These features ensure continuous operation with minimal downtime, even in challenging geological conditions.

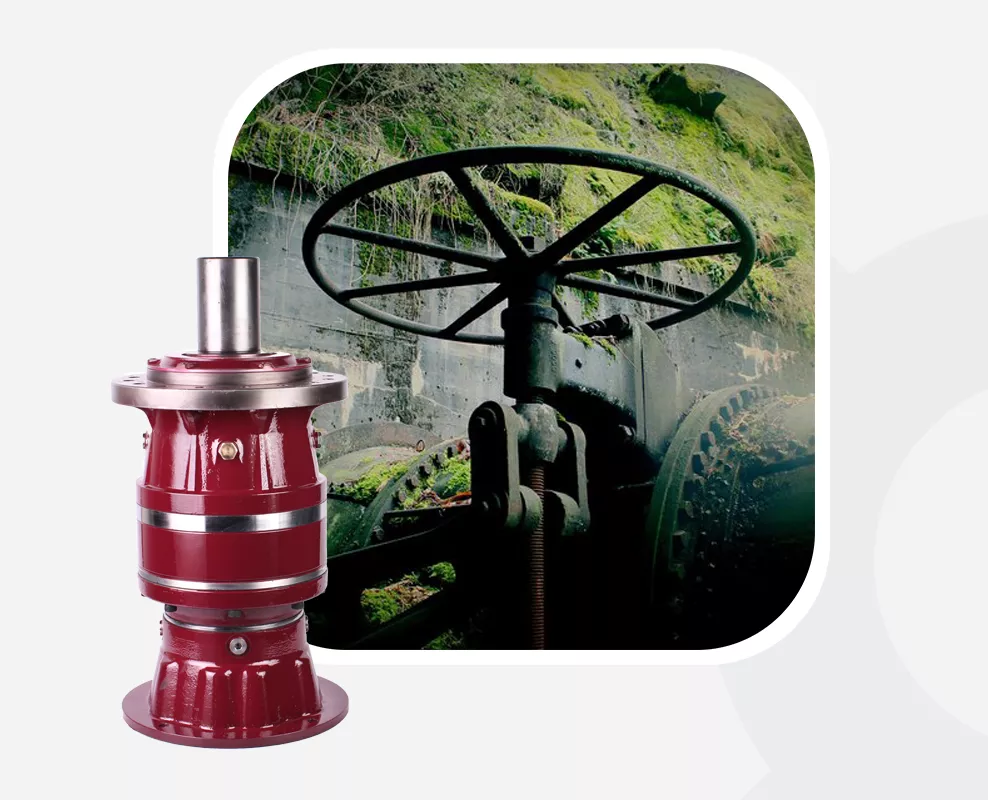

Pumps handle fluids like slurry or dewatering, crucial for processing and site management.
Optimal Gearbox Type: Planetary gearbox, for reliable speed regulation in abrasive conditions.
Features of the Device: Flows up to 5,000 m³/hour, corrosion-resistant impellers, and submersible or centrifugal types.
Features of the Gearbox: Inline planetary with ratios 5:1-15:1, torque 100,000 Nm, and moisture seals.
Selection Considerations: Focus on abrasion resistance; match to fluid viscosity; ensure efficiency to reduce energy use in continuous pumping.
Optimal Gearbox Type:
The most effective drive system for slurry and water pumps is the planetary gearbox, thanks to its ability to deliver precise speed regulation, high torque density, and durability under abrasive and corrosive conditions. The compact design of planetary gearboxes allows integration into both submersible and centrifugal pumps, ensuring reliable operation even in limited installation spaces.
When selecting a gearbox for slurry and water pumps, engineers must prioritize abrasion and corrosion resistance, as these are the most critical factors for pump longevity. The gearbox must be carefully matched to fluid viscosity, solid particle size, and expected duty cycle. Efficiency is another essential consideration, since continuous pumping consumes a significant portion of a mine’s total energy usage.

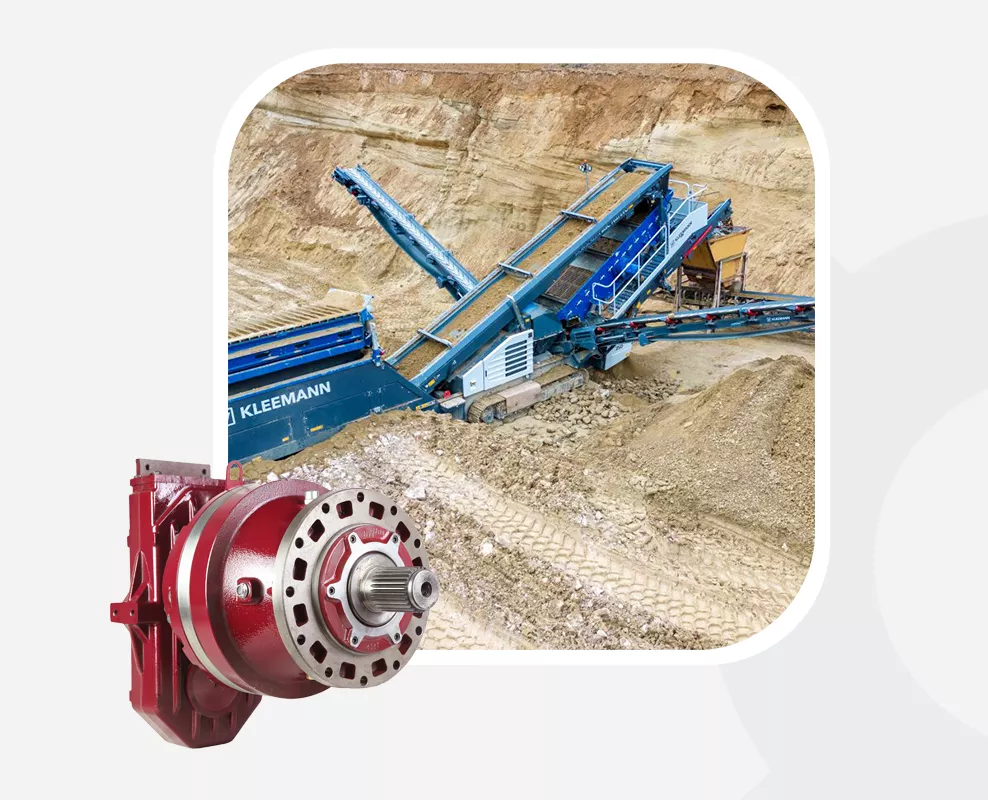

Vibrating screens separate materials by size, used in processing plants.
Optimal Gearbox Type: Planetary or helical gearbox exciters, with planetary for high-vibration durability.
Features of the Device: Multi-deck designs, amplitudes up to 10 mm, throughput 500 tons/hour, and adjustable frequencies.
Features of the Gearbox: Gearbox exciters with ratios 5:1-10:1, torque 50,000 Nm, and vibration-tolerant bearings.
Selection Considerations: Emphasize cyclic load handling; select for frequency control; ensure oil-tight seals against dust and moisture.
For vibrating screen applications, planetary or helical gearbox exciters are commonly used. The planetary gearbox is often preferred in high-vibration environments because of its compact structure, high torque transmission, and exceptional resistance to cyclic stresses. Helical designs, on the other hand, may be used in less demanding setups where efficiency and smoother motion are prioritized.
Modern vibrating screens are available in multi-deck configurations, allowing simultaneous separation of several particle sizes. They typically operate with amplitudes of up to 10 mm, throughput capacities of around 500 tons per hour, and adjustable vibration frequencies to meet specific material handling requirements. Screens can be designed for wet or dry processing, depending on the type of ore and processing stage, and are usually equipped with dust-control systems for environmental compliance.
When selecting a gearbox for vibrating screens, engineers must prioritize cyclic load handling capacity and frequency control to maintain consistent screening performance. The gearbox should be designed with low-maintenance requirements, high fatigue strength, and durable sealing systems to extend operating life.
Continuous miners cut and gather coal or ore in underground seams without blasting.
Optimal Gearbox Type: Planetary gearbox, for cutter head and conveyor drives.
Features of the Device: Cutting widths up to 4 meters, production rates 1,000 tons/hour, remote operation for safety.
Features of the Gearbox: Compact planetary with high ratios, torque 300,000 Nm, and explosion-proof casings.
Selection Considerations: Prioritize explosion-proof ratings; assess torque for hard seams; integrate with hydraulic systems for versatility.
This detailed overview equips mining professionals with the knowledge to select optimal gearboxes, particularly planetary types, for enhanced performance. For planetary gearbox solutions, contact specialists to customize for your operations.
Conclusion: Why Planetary Gearboxes Are the Optimal Industrial Gearbox for Mining
While various industrial gearboxes in mining offer value, planetary gearboxes stand out for their torque, efficiency, and durability, driving innovation and productivity. For tailored planetary solutions, explore brands like Seawide and Bonfiglioli. Consult experts to elevate your mining operations.
Explains the importance of handling high loads, dust, moisture, extreme temperatures, and ensuring long service life.
Covers planetary, helical, bevel, worm, spur, cycloidal gearboxes and compares their benefits and limitations.
Highlights high torque density, compact design, durability, efficiency, multi-stage configurations, and shock load resistance.
Discusses applications in drill rigs, crushers, conveyors, loaders, etc., and factors like gear ratio, input power, temperature, and sealing.
Focuses on gear ratio, shock resistance, compatibility with hydraulic or electric motors, modular design, and dust protection.
Explains the advantages of planetary or bevel-planetary hybrids in absorbing vibration, with emphasis on lubrication and rugged construction.
Includes sealing systems, anti-corrosion coatings, special lubricants, IP protection, and thermal resistance.
Suggests using high-efficiency gearboxes (>95%), predictive maintenance, proper lubrication, durable materials, and designs optimized for easy servicing.
Our specialized team analyzes your industry needs to recommend the most efficient and durable gearboxes
