Industrial Gearboxes Application in Cement
In the demanding cement industry, industrial gearboxes are vital for power transmission, ensuring reliable operation of heavy machinery under harsh conditions such as high torque demands, abrasive dust, extreme temperatures, and continuous operation. From raw material extraction to cement grinding, gearboxes drive efficiency in applications like crushers, mills, conveyors, and kilns. This SEO-optimized guide explores various types of industrial gearboxes in the cement industry, their technical structures, advantages, and specific applications. We cover a range of gearbox types—including planetary, helical, bevel, worm, spur, cycloidal, and more—each tailored to specific cement production needs. If you’re seeking insights on gearboxes for cement plant equipment, gearbox types in cement applications, or selecting the best gearbox for cement operations, this article provides technical depth, real-world examples, and practical advice to optimize machinery performance.
By leveraging the strengths of different industrial gearboxes, cement plant engineers can enhance operational efficiency, reduce downtime, and achieve cost savings in challenging environments like limestone quarries, clinker production lines, or cement grinding facilities. Drawing on industry standards like ISO 6336 for gear load calculations, we highlight how these gearboxes contribute to reliability, energy efficiency, and sustainability in cement production.
Industrial gearboxes in the cement sector are designed to meet specific demands, such as high torque, dust resistance, and durability in continuous operations. Here’s an overview of the main types:
Each gearbox type offers unique benefits, making them suitable for specific cement industry applications. Let’s explore each type in detail, highlighting their technical structures and uses.
Planetary gearboxes, also known as epicyclic or solar gearboxes, are engineered for high torque density and compactness. Their structure includes a central sun gear linked to the input shaft, multiple planet gears (typically 2-6 for load distribution) orbiting the sun and held by a carrier, and an outer ring gear with internal teeth acting as the housing. The multi-point load distribution allows gear ratios up to 10:1 per stage (or 1000:1+ in multi-stage setups), providing precise speed reduction and torque amplification—up to 1,000,000 Nm in industrial models—ideal for cement applications like ball mills or rotary kilns handling loads exceeding 100 tons. They achieve efficiencies of 95-98%, driven by low friction and even load sharing, using corrosion-resistant materials like case-hardened alloy steel, EP-additive lubrication, and IP67-rated seals to withstand dust and temperatures from -20°C to +100°C, common in cement plants. The gear ratio formula [(Ring Teeth + Sun Teeth) / Sun Teeth] when the ring is fixed enables customization for tasks like variable-speed milling. Brands like Bonfiglioli and Seawide offer modular planetary gearboxes for cement plants, integrating with electric or hydraulic drives. Their ability to handle shock loads up to 5x nominal torque ensures reliability in abrasive environments, with IoT-enabled monitoring for predictive maintenance enhancing sustainability.
Advantages:
Helical gearboxes, with angled teeth (15-30°), ensure smooth power transmission through gradual engagement. They support ratios up to 100:1, torque to 500,000 Nm, and efficiency of 90-95%, operating in -10°C to +60°C.
Advantages: Smooth operation (<75 dB), cost-effectiveness, and versatility for continuous loads. Applications: Conveyors (handling limestone or clinker), crushers (jaw or cone), cement mills, and auxiliary equipment like fans and pumps. Limitations: Larger footprint and slightly lower efficiency compared to planetary gearboxes, less ideal for ultra-high-torque applications.
Gearbox Type | Torque (Max Nm) | Efficiency | Compactness | Best Cement Use | Key Limitation |
Planetary | 1,000,000 | >95% | High | Mills, kilns | Higher cost |
Helical | 500,000 | 90-95% | Moderate | Conveyors, crushers | Larger size |
Bevel | 100,000 | 90-92% | High | Elevators, conveyors | Limited ratios |
Worm | 50,000 | 50-90% | High | Feeders, silos | Low efficiency |
Spur | 200,000 | 94-98% | Low | Pumps, fans | Noisy |
Cycloidal | 500,000 | 90-95% | High | Automation | Costly |
The cement industry demands robust gearboxes tailored to specific machinery and conditions. Planetary gearboxes lead in high-torque, compact applications like mills and kilns, while helical, bevel, worm, spur, and cycloidal gearboxes serve complementary roles in conveyors, feeders, and automation. For tailored solutions, consult brands like Bonfiglioli or Seawide and Reggiana optimize cement plant performance.

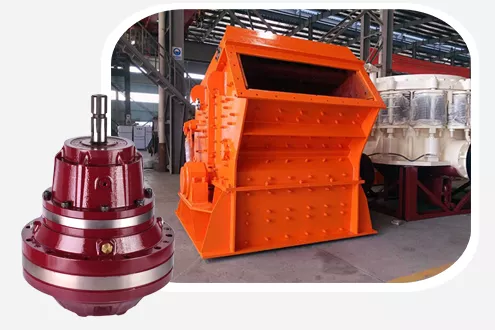

In the cement industry, specialized machinery is critical for efficient raw material processing, clinker production, and cement grinding. Each piece of equipment operates under extreme conditions, including high torque demands, abrasive dust, extreme temperatures, and continuous operation, necessitating robust power transmission systems like industrial gearboxes to ensure reliability and performance. Below, we introduce key cement production devices one by one, highlighting their features, recommended gearbox types (presenting planetary, helical, bevel, worm, spur, and cycloidal gearboxes on equal footing to suit specific needs), gearbox features, and critical factors to consider when selecting a gearbox. This section builds on our comprehensive guide to industrial gearboxes in the cement industry, providing practical insights for engineers and operators aiming to optimize machinery longevity and efficiency. Aligned with industry standards like ISO 6336 and AGMA, this guide equips cement professionals with balanced knowledge to select suitable gearboxes for enhanced performance.

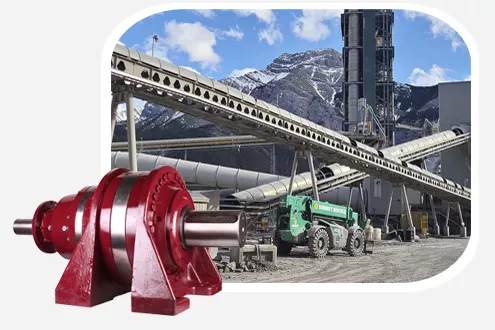

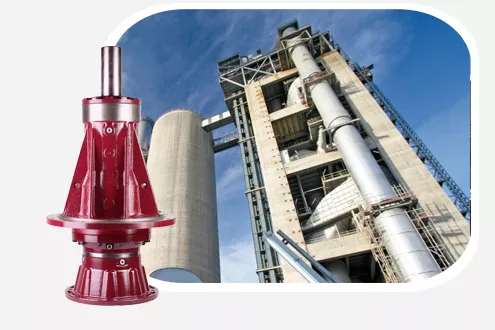

Selection Considerations: Consider belt tension and length—planetary for high starting torque, helical for cost savings; ensure dust-proofing (IP67 seals); prioritize energy efficiency for long runs; assess maintenance ease in dusty plants.
Features of the Gearbox:

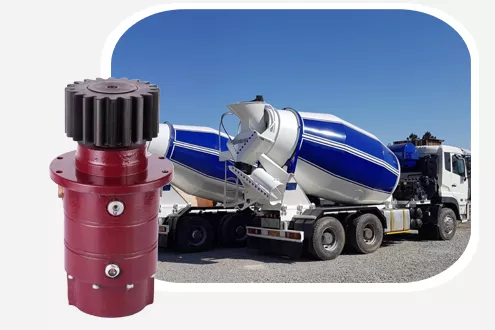

Selection Considerations: Prioritize shock resistance for abrasive mixes; ensure dust-proof seals; cycloidal for precision automation, planetary for high-torque mixing; evaluate energy efficiency for continuous operation.

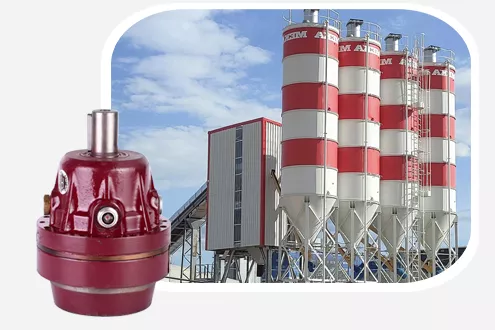

Selection Considerations: Focus on safety (worm’s self-locking for controlled flow); ensure dust resistance; planetary for higher torque, worm for slow-speed tasks; assess maintenance needs in confined silo spaces.

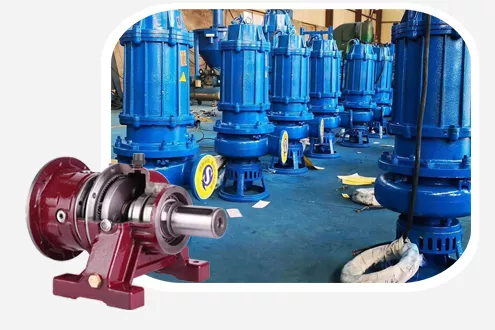

Selection Considerations: Focus on abrasion and dust resistance; match to fluid viscosity; planetary for tight spaces, helical for cost savings; ensure efficiency for continuous pumping.
Ventilation systems manage air quality and dust control in cement plants, vital for worker safety and equipment longevity.
Recommended Gearbox Type: Helical or planetary gearboxes. Helical for cost-effective performance, planetary for compact efficiency.
Features of the Device: Airflows up to 50,000 m³/hour, corrosion-resistant blades, variable speeds, and explosion-proof designs for dusty environments.
Features of the Gearbox:
Helical: Ratios 5:1-10:1, torque to 50,000 Nm, efficiency 90-95%, low noise (<75 dB).
Planetary: Ratios 5:1-10:1, torque to 50,000 Nm, efficiency >95%, compact and vibration-tolerant.
Selection Considerations: Focus on efficiency and noise reduction (<70 dB); ensure dust resistance; helical for larger spaces, planetary for tight compartments; prioritize explosion-proofing for safety.

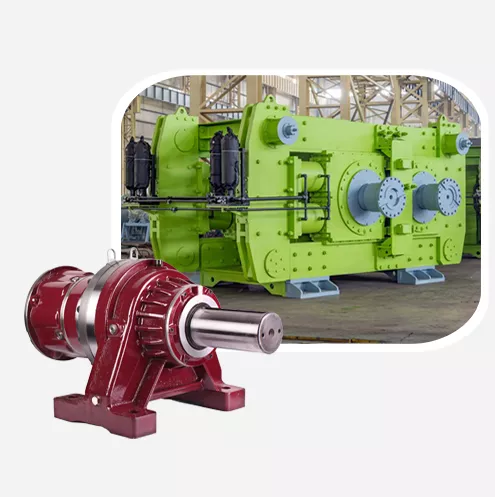

Roller presses compact raw materials or clinker before grinding, enhancing efficiency in cement production.
Recommended Gearbox Type: Planetary or helical gearboxes. Planetary for high-torque compaction, helical for moderate loads.
Features of the Device: Press forces up to 20,000 kN, throughput >1,500 tons/hour, adjustable roller gaps, and hydraulic systems for precise control.
Features of the Gearbox:
Selection Considerations: Emphasize torque and shock resistance for high-pressure compaction; ensure dust-proof seals; planetary for compact, heavy-duty presses, helical for cost savings; integrate with hydraulic systems.
The cement industry relies on robust gearboxes tailored to withstand high torque, abrasive dust, and extreme temperatures in machinery like crushers, mills, kilns, and conveyors. Each gearbox type—planetary, helical, bevel, worm, spur, and cycloidal—offers unique advantages, from planetary’s high torque density and compactness for mills to helical’s cost-effectiveness for conveyors and worm’s self-locking for silo feeders. By carefully evaluating torque requirements, environmental conditions, space constraints, and maintenance needs, cement plant engineers can select the optimal gearbox to enhance efficiency, reduce downtime, and ensure sustainability. For tailored solutions, consult trusted brands like Bonfiglioli or Wikov to optimize cement production performance.

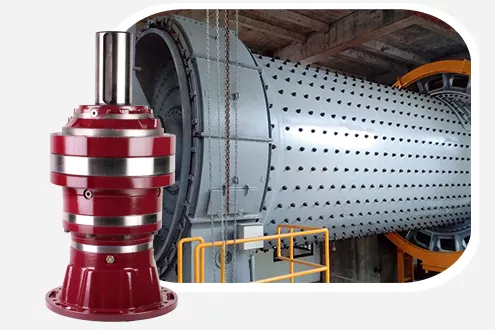

Planetary gearboxes are typically the best choice for high-torque applications like ball mills due to their compact design, torque capacity up to 1,000,000 Nm, and efficiency exceeding 95%. Their ability to handle shock loads and integrate with variable frequency drives makes them ideal for heavy-duty milling.
Helical gearboxes are favored for conveyors due to their smooth operation, efficiency of 90-95%, and cost-effectiveness. They handle moderate loads (up to 200,000 Nm) and are easier to maintain in dusty environments, making them suitable for transporting limestone or clinker.
Worm gearboxes offer high reduction ratios (up to 100:1) and self-locking capabilities, ensuring safe, controlled material flow from silos. Their compact design is ideal for confined spaces, though their lower efficiency (50-90%) limits use in high-power applications.
Bevel gearboxes are used in applications requiring 90° power redirection, such as bucket elevators and conveyor turns. Their compact design and efficiency (90-92%) make them suitable for angled drives, though they are limited by lower torque capacity (up to 100,000 Nm) compared to planetary gearboxes.
Gearboxes like planetary and helical, with efficiencies above 90%, reduce energy consumption by minimizing friction losses. Planetary gearboxes, with >95% efficiency, can save 20-30% on energy costs in high-torque applications like kilns and mills, supporting sustainable operations.
Regular lubrication with EP additives, dust-proofing checks, and vibration monitoring are critical. IoT-enabled sensors can reduce downtime by 20% through predictive maintenance, especially for planetary and helical gearboxes in dusty, high-temperature environments.

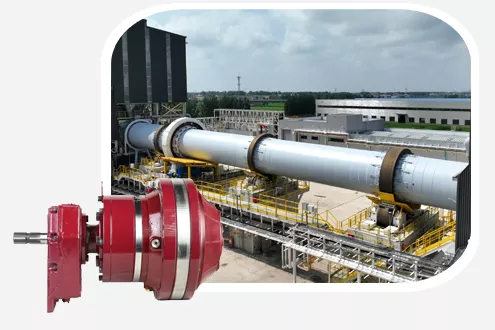

Planetary gearboxes are preferred for rotary kilns due to their high torque density (up to 500,000 Nm), compactness, and ability to operate reliably at slow speeds (1-5 RPM) in extreme heat (>1,400°C). Their robust seals and durability minimize maintenance in harsh conditions.
Cycloidal gearboxes are ideal for applications requiring high shock resistance and precision, such as automated mixers or crushers. Their torque capacity (up to 500,000 Nm) and efficiency (90-95%) make them suitable for advanced automation, though their higher cost may favor planetary gearboxes for similar tasks.
